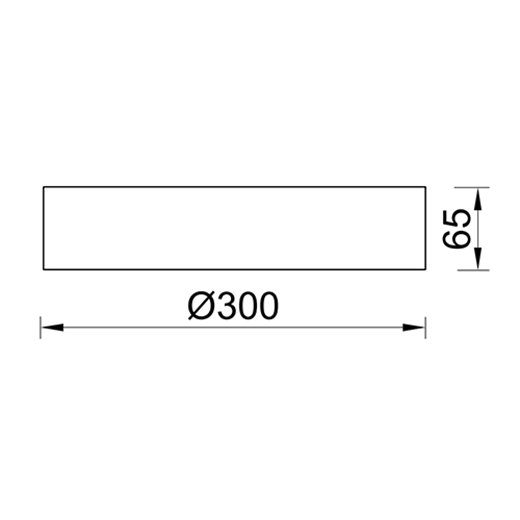

Technical Drawing

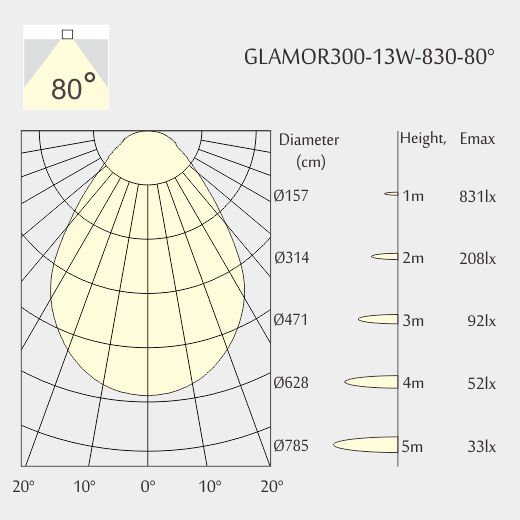

Light Distribution
Code:G3RS-8S38013F-WN

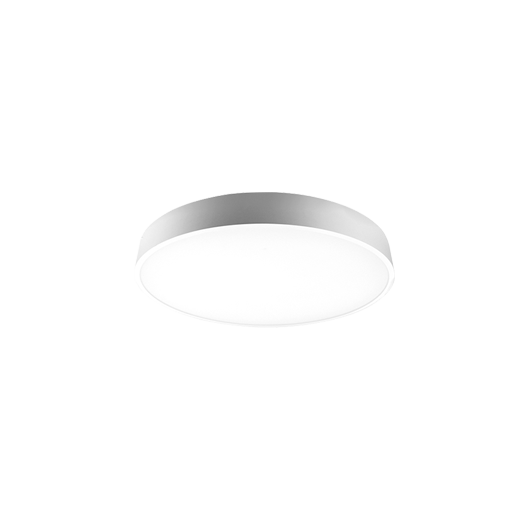

GLAMOR 300 Round LED Ceiling Light
Round Ceiling Light/Wall Light with microprismatic cover made of die-cast-aluminium with white powder-coating finish (RAL 9016); On-off Driver; System Power 13W; measurements Ø300mm x 65mm; CCT 3000K/3500K/4000K Switchable with System Luminous Flux of 1400lm@3000K, 1450lm@3500K and 1500lm@4000K; high color rendering at an index of CRI80; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient EBright LED Chips; 5 years warranty; wide beam characteristic with 80° beam angle; degree of housing protection IP44; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
Technical Drawing
Light Distribution
Application: Indoor
Product Category: Ceiling Light/Wall Light
Mounting Type: Ceiling Mounted/Wall mounted
Housing Color: White
RAL-Code: 9016
Material: Die-cast aluminium
Finish: Powder-coated
IP: 44
CCT: 3000K-3500K-4000K
CRI: 80
LED Output: max. 2300lm
System Output: max. 1500lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: EBright
Beam Angle: 80°
UGR: <19
LED Driver: ON-OFF
LED Power: 11W
System Power: 13W
Input Voltage: 220-240VAC
LED Voltage: 33V
LED Current: 350mA
Measurements: Ø300mm
Height: 65mm
Net Weight: 1300g
Gros Weight: 1550g
