Application: Indoor
Product Category: Downlight
Type: Fixed (Horn Type)
Mounting Type: Recessed Mounted
Trim: Round, Trimless Round, Trimless Round (Easy Installation)
Housing Color: Black, White
Reflector Color: Black, Dark Light, Gold, Matt, Specular, White
IP: 54
CCT: 2700K, 3000K, 4000K
CRI: 90
LED Output: ≤2800lm
System Output: ≤2200lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 20°, 30°, 40°, 50°
UGR: <19
LED Driver: None, 1-10V Dim, DALI Dim, ON-OFF, Phase Dim
LED Power: 13W, 18W, 25W
System Power: 15W, 21W, 28W
LED Voltage: 36V
LED Current: 350mA, 500mA, 700mA
Measurements: Ø96mm, Ø110mm
Cutout: Ø100mm, Ø108mm
Ceiling Height: 181mm, 207mm
Net Weight: 645g, 655g, 685g, 820g, 830g, 860g
Gros Weight: 875g, 935g, 965g, 1050g, 1100g, 1150g

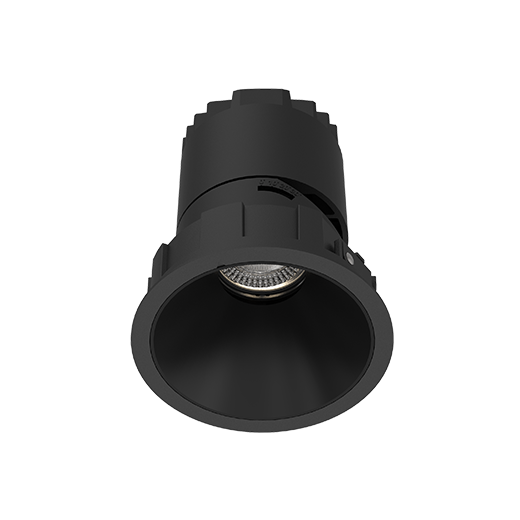

Trim: Round
Trim: Round

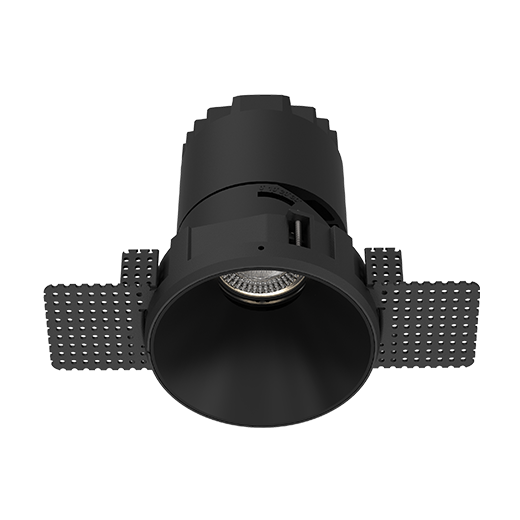

Trim: Trimless Round
Trim: Trimless Round

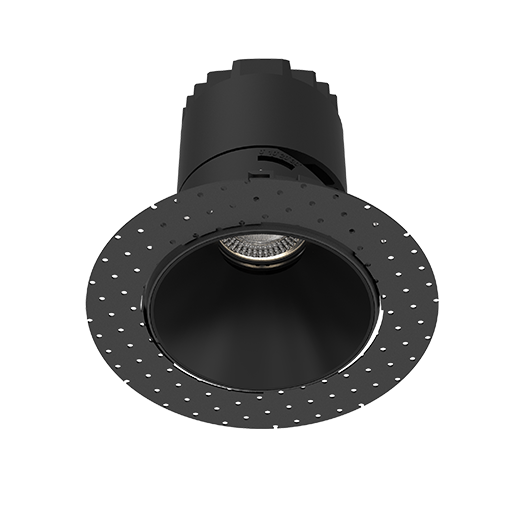

Trim: Trimless Round (Easy Installation)
Trim: Trimless Round (Easy Installation)
