Application: Indoor
Product Category: Downlight
Type: Adjustable
Mounting Type: Recessed Mounted
Trim: Square, Trimless Square, Trimless Square (Easy Installation)
Housing Color: Black, White
Reflector Color: Black, Dark Light, Gold, Matt, Specular, White
IP: 54
CCT: 2700K, 3000K, 4000K
CRI: 90
LED Output: ≤2800lm
System Output: ≤2000lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 10°, 18°, 30°, 40°, 45°, 50°
UGR: <19
LED Driver: None, 0-10V Dim, DALI Dim, ON-OFF, Phase Dim
LED Power: 7W, 13W, 18W, 25W
System Power: 9W, 15W, 21W, 28W
LED Voltage: 36V
LED Current: 200mA, 350mA, 500mA, 700mA
Measurements: 91mm x 91mm, 107mm x 107mm
Cutout: 96mm x 96mm, 104mm x 104mm
Ceiling Height: 181mm, 257mm
Net Weight: 675g, 685g, 715g, 850g, 860g, 900g
Gros Weight: 875g, 935g, 965g, 1050g, 1100g, 1150g
Pivot: Max. 30°
Rotation: 355°

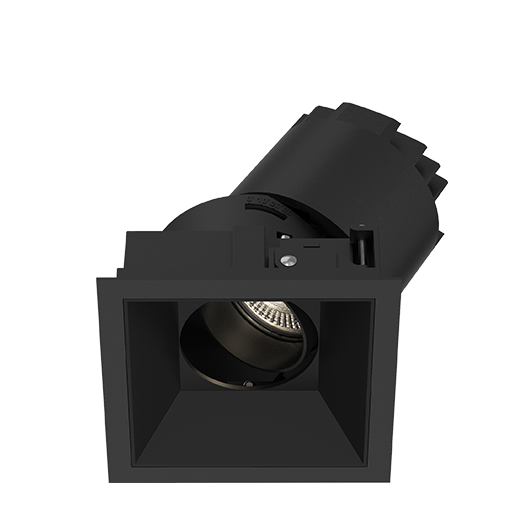

Trim: Square
Trim: Square

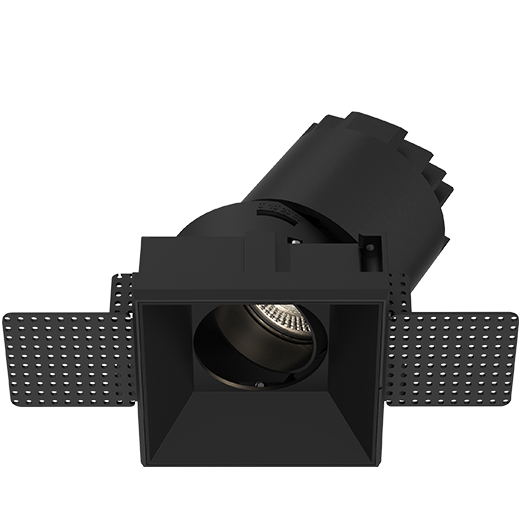

Trim: Trimless Square
Trim: Trimless Square

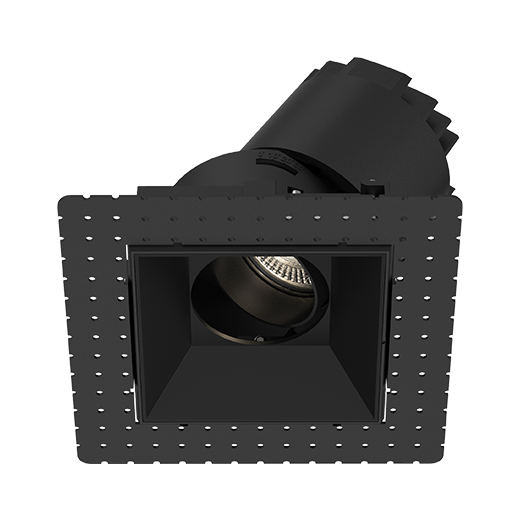

Trim: Trimless Square (Easy Installation)
Trim: Trimless Square (Easy Installation)
