SPACE 60 EVO Standard Curve Ceiling Linear Module
Application: Indoor
Product Category: Linear System
Type: Standard Curve

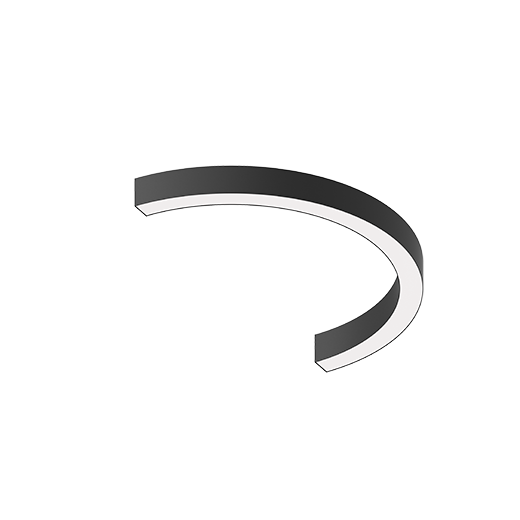

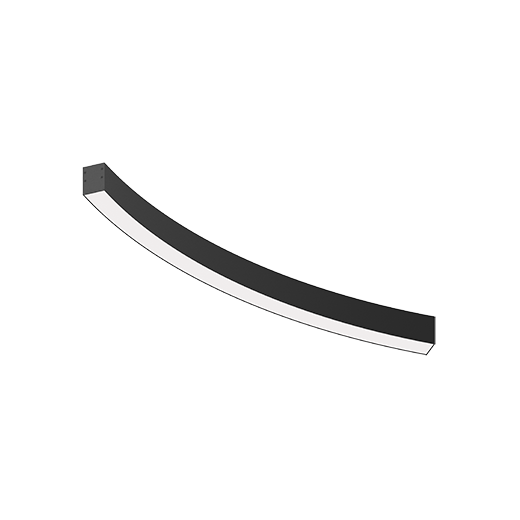

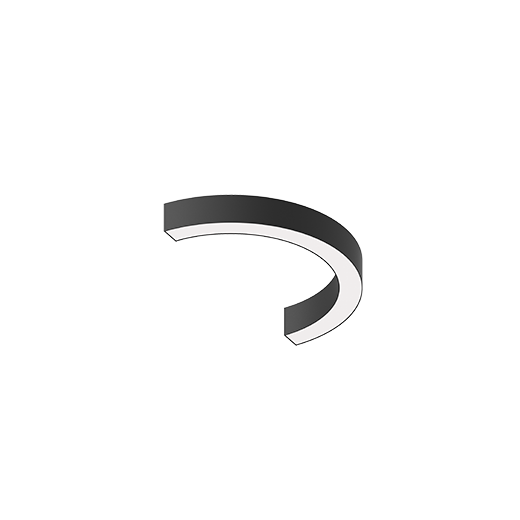

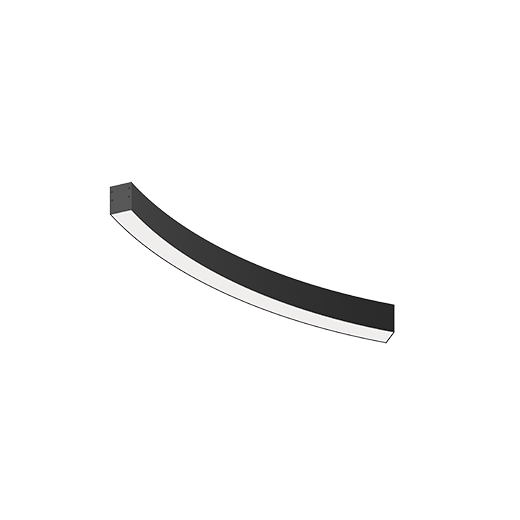

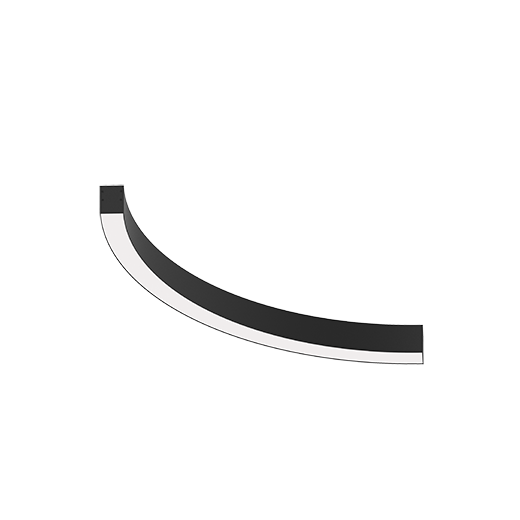

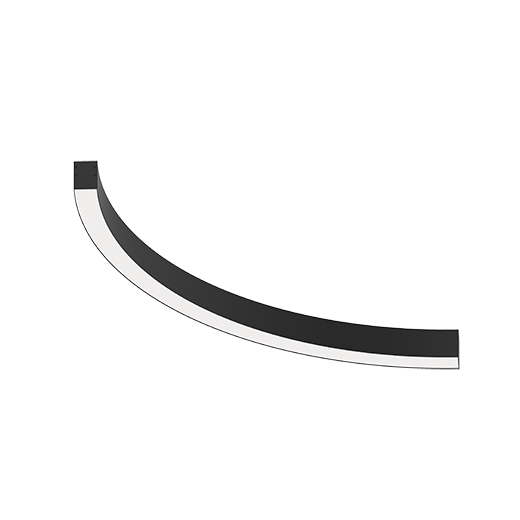

DIY: C660 1/2 of a Circle, C960 1/2 of a Circle, C1260 1/4 of a Circle, C1560 1/4 of a Circle, C1860 1/4 of a Circle, C2060 1/4 of a Circle, C2460 1/8 of a Circle, C3060 1/8 of a Circle
Mounting Type: Ceiling Mounted
Housing Color: Black, White
Diffuser: Microprismatic
IP: 20
CCT: 3000K, 4000K
CRI: 80, 90
LED Output: ≤5700lm
System Output: ≤4100lm
Lifetime: 50000h@L80B10
LED Chip: Lumileds
Beam Angle: 80°
UGR: ＞19
LED Driver: DALI Dim, ON-OFF
LED Power: 20W, 21W, 25W, 31W, 34W
System Power: 22W, 23W, 28W, 34W, 37W
LED Voltage: 28V
LED Current: 700mA, 750mA, 900mA, 1100mA, 1200mA
Measurements: 942mm*60mm, 1178mm*60mm, 1413mm*60mm, 1570mm*60mm
Net Weight: 1500g, 1900g, 2300g, 2500g
Gross Weight: 1900g, 2350g, 2850g, 3100g
Measurements: 942mm*60mm
Measurements: 942mm*60mm
Measurements: 1413mm*60mm
Measurements: 1413mm*60mm
Measurements: 1178mm*60mm
Measurements: 1178mm*60mm
Measurements: 1570mm*60mm
Measurements: 1570mm*60mm
