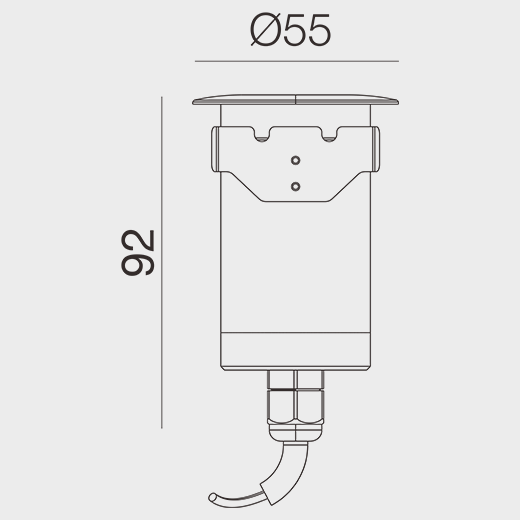

Technical Drawing

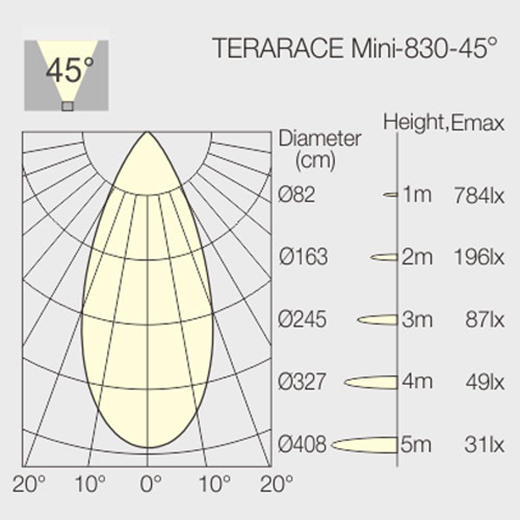

Light Distribution
Code:TEMI-8304506F-DN

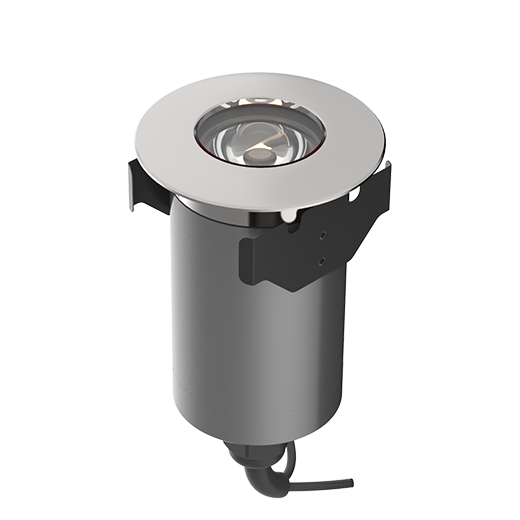

TERARACE Ground Light
Ground Light round made of die-cast aluminum; external 24VDC LED Driver is required; Top Cover Stainless Steel; LED 5W; measurements Ø55mm; height of the luminaire is 92mm; CCT 3000K with a System Output of 500lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 3 years warranty; beam characteristic with 45° beam angle; degree of housing protection according to DIN EN 60529 (IP67); Impact resistance of the luminaire is in the class IK08;
Technical Drawing
Light Distribution
Application: Outdoor
Product Category: Ground Light
Type: Fixed
Mounting Type: Ground Installation
Trim: Round
Housing Color: Stainless Steel
Material: Die-Cast Aluminium
IP: 67
CCT: 3000K
CRI: 80
System Output: 500lm
Lifetime: 50000h@L80B10
LED Chip: CITIZEN
Beam Angle: 45°
LED Driver: None
LED Power: 5W
System Power: 5.5W
LED Voltage: 24V
Measurements: Ø55mm
Height: 92mm
