TERARACE Nano

Code:TENA-8303502F-DN

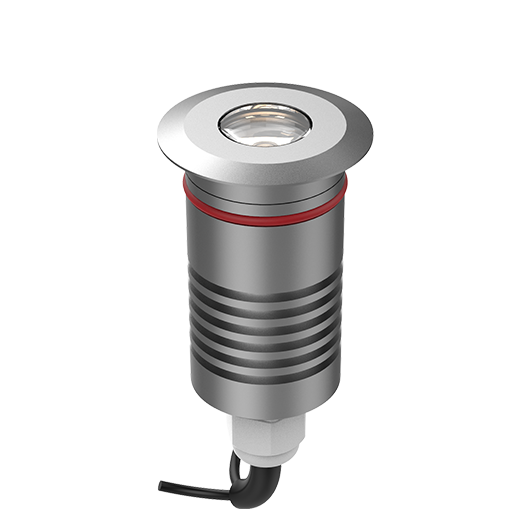

TERARACE Ground Light

Ground Light round made of die-cast aluminum; external 24VDC LED Driver is required; Top Cover Stainless Steel; LED 1.6W; measurements Ø40mm; height of the luminaire is 67mm; CCT 3000K with a System Output of 120lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 3 years warranty; beam characteristic with 35° beam angle; degree of housing protection according to DIN EN 60529 (IP67); Impact resistance of the luminaire is in the class IK08;

General

ApplicationOutdoor

Product CategoryGround Light

TypeFixed

Mounting TypeGround Installation

TrimRound

Housing ColorStainless Steel

MaterialDie-Cast Aluminium

IP67

LED

CCT3000K

CRI80

System Output120lm

Lifetime50000h@L80B10

LED ChipOSRAM

Optics

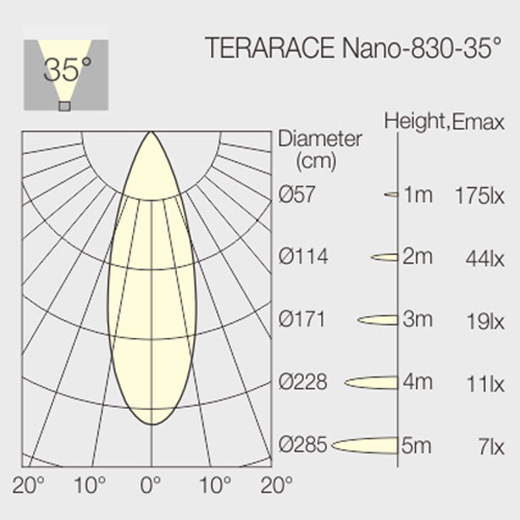

Beam Angle35°

Electric

LED DriverNone

LED Power1.6W

System Power2W

LED Voltage24V

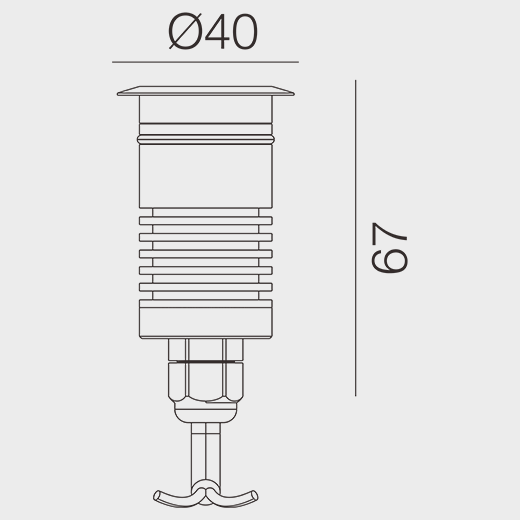

Dimensions

MeasurementsØ40mm

Height67mm
